MTD 917-3497

Attn: Wiring harness may need modified

to fit OEM application check S/N

For T adapter OEP 33-159 kits

repair XMC1003 (fm) XMC1002(m)

This item is sold in multiples of: 1

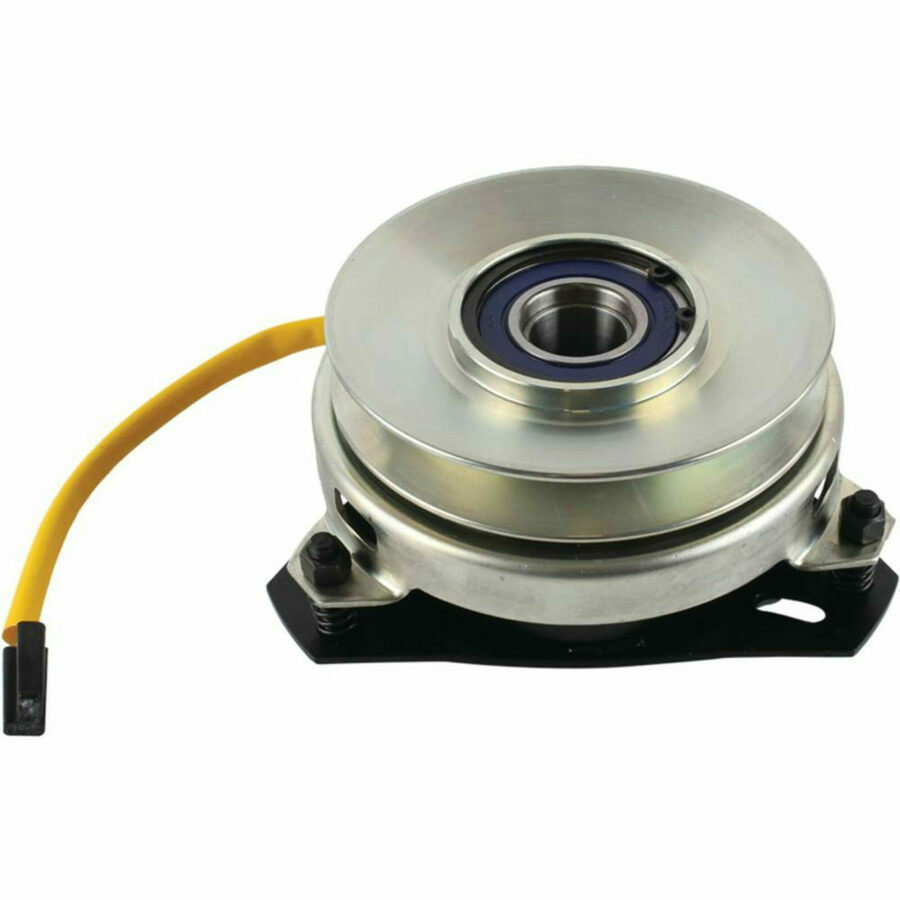

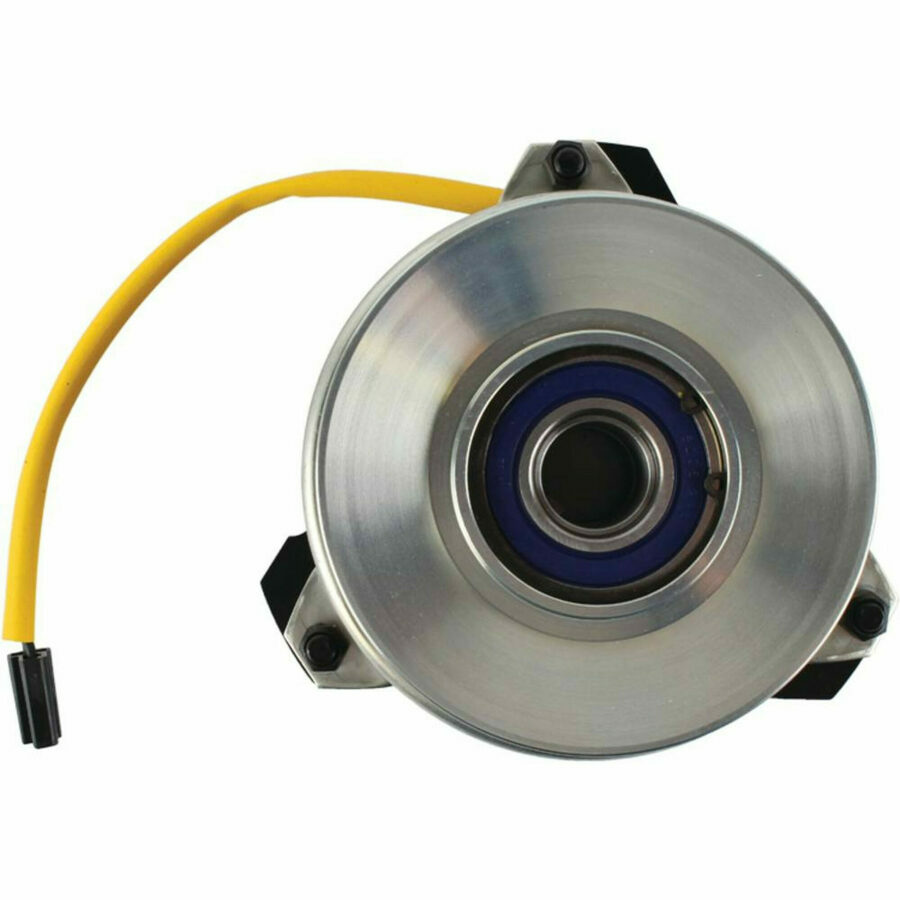

Description: The Xtreme PTO Clutch With machined pulleys, Cool Coil technology, high performance bearings, stainless steel straps and rivets, Xtreme’s Tough Wire Protection System and a replaceable bearing, the Xtreme design is pure performance in every aspect.

Details: Machine Pulleys: Machined pulleys are stronger, quieter and smoother for greater stability and speed

High Temp Bearing: High-temperature bearing grease is rated more than twice what is required

Triple Protected: integrated watertight connection with 3-layer protection conceals wires

Xtreme Cool Coil: Xtreme Cool Coil runs over 20% cooler for an extended service life

Stainless Steel Rivets: Xtreme clutches use tough stainless steel brake rivets for a long and safe service life.

Fits model(s): Bolens FST14, FST15, LR13, LT14, LT145, LT15, LT16 and LT165 Cub Cadet 1110, 1105, 1215, 1220, 1225, 1325, 1405, 1415, 1420, 1605, 1610, 1615, 1620, 1715, 1720,1730, LT1018, LT1650, LT1800 LT1850 and LT2150 Ford 9800686 Lawn-Boy 156729, 52140, 52144A, 52145A, 52153, 52161, 52163, 52163A and 52164, 1991-1992 MTD 1527, 1600, 1800, 1170, 1180, 1515, 1517, FST14, FST15, LT13, LT14, LT15, LT16, LT145 and LT165 Simplicity 1613G, 1613H, 1615G, 1615H, 1616H, 2614H, 2616H, LT, LTG and LTH series Snapper GT180, GYT, HT, LT, RYT, YT series, Snapper ZTR Scrambler, series 5-6, ZTR Twin Stick, series 6 and ZTR Yard Cruiser series 1-4

OEM Cross Reference number(s): Ford/New Holland LB740401 Troy-Bilt GW-B1755341 Craftsman GW-B1755341 Cub Cadet GW-B1755341 Bolens GW-B1755341 Bolens GW-1755341P Cub Cadet GW-1755341P Craftsman GW-1755341P Troy-Bilt GW-1755341P Jacobsen C47443 CaseIH C47443 Ingersoll Rand C47443 Jacobsen C33197 Ingersoll Rand C33197 CaseIH C33197 CaseIH C32372 Ingersoll Rand C32372 Bolens B1755341 Cub Cadet B1755341 Craftsman B1755341 Troy-Bilt B1755341 Toro 99-8012 Ingersoll Rand 990947 CaseIH 990947 Jacobsen 990947 Ford/New Holland 9800686 Troy-Bilt 959-3230 Cub Cadet 959-3230 Bolens 959-3230 MTD 959-3230 Craftsman 959-3230 Troy-Bilt 917-3497 White 917-3497 Cub Cadet 917-3497 MTD 917-3497 Craftsman 917-3497 Bolens 917-3497 White 917-1708 Troy-Bilt 917-1708 MTD 917-1708 Cub Cadet 917-1708 Craftsman 917-1708 Bolens 917-1708 Bolens 917-0983 Craftsman 917-0983 MTD 917-0983 Cub Cadet 917-0983 White 917-0983 Lawn-Boy 740401 Craftsman 775228 Snapper 775228 Snapper 74022 Craftsman 74022 White 717-3497 Troy-Bilt 717-3497 Cub Cadet 717-3497 MTD 717-3497 Craftsman 717-3497 Bolens 717-3497 Troy-Bilt 717-3036 MTD 717-3036 Craftsman 717-3036 Cub Cadet 717-3036 Cub Cadet 717-1708 Craftsman 717-1708 Troy-Bilt 717-1708 MTD 717-1708 White 717-1708 Bolens 717-1708 Cub Cadet 717-0983P MTD 717-0983P MTD 717-0983 White 717-0983 Cub Cadet 717-0983 Bolens 717-0983 Craftsman 717-0983 Simplicity 71703816 Snapper 7074022YP Craftsman 7074022YP Craftsman 7074022 Snapper 7074022 Snapper 707402 Craftsman 707402 Snapper 7053679YP Snapper 7053679 Craftsman 7053679 Snapper 7019982 Craftsman 7016343 Snapper 7016343 Snapper 53679 Craftsman 53679 Warner 5215-59 Warner 5215-129 Warner 5215-108 Warner 5215-103 Warner 5210-62 Warner 5210-56 Warner 5210-49 Warner 5210-41 Warner 5210-33 Warner 5210-3 Warner 5210-12 Lawn-Boy 243038 King Cat 232201 Snapper 19982 Craftsman 19982 MTD 1755341P Bolens 1755341P Cub Cadet 1755341P Craftsman 1755341P Troy-Bilt 1755341P MTD 1755341 Bolens 1755341 Cub Cadet 1755341 Craftsman 1755341 Troy-Bilt 1755341 MTD 1742518 Bolens 1742518 Cub Cadet 1742518 Craftsman 1742518 Troy-Bilt 1742518 Craftsman 1703816SM Simplicity 1703816SM AGCO 1703816SM Simplicity 1703816 AGCO 1692430 Snapper 16343 Craftsman 16343 Warner 1-5210-3 Toro 11346 Toro 113426

Brand: Xtreme
