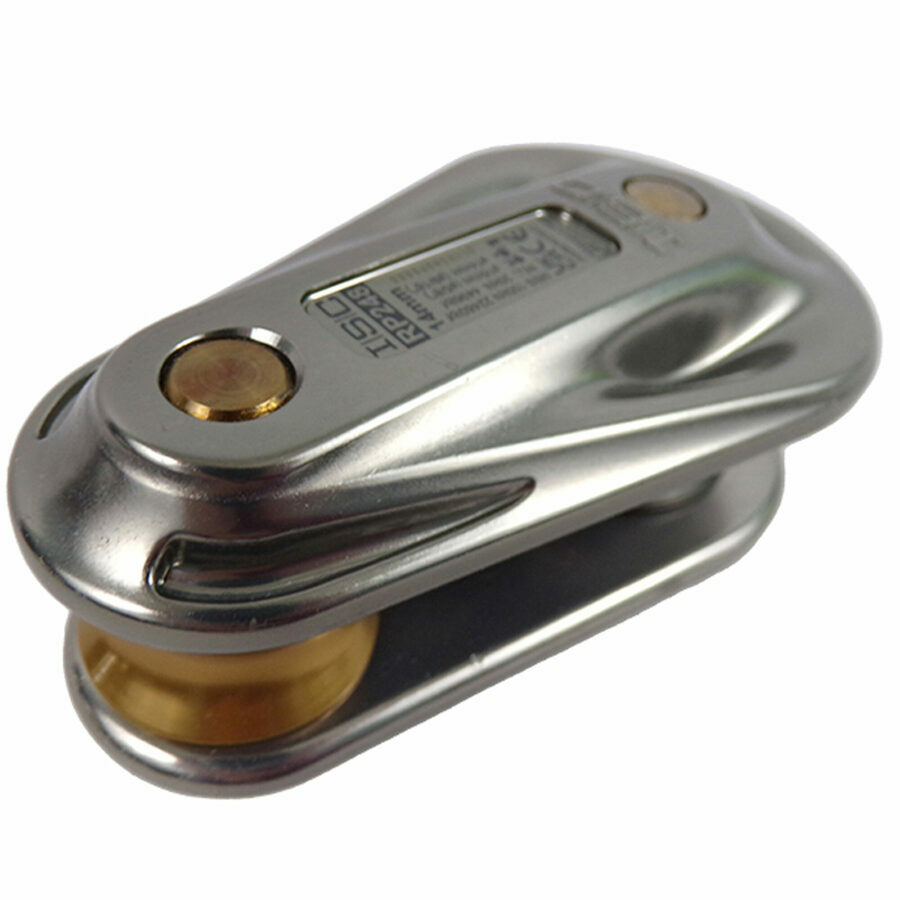

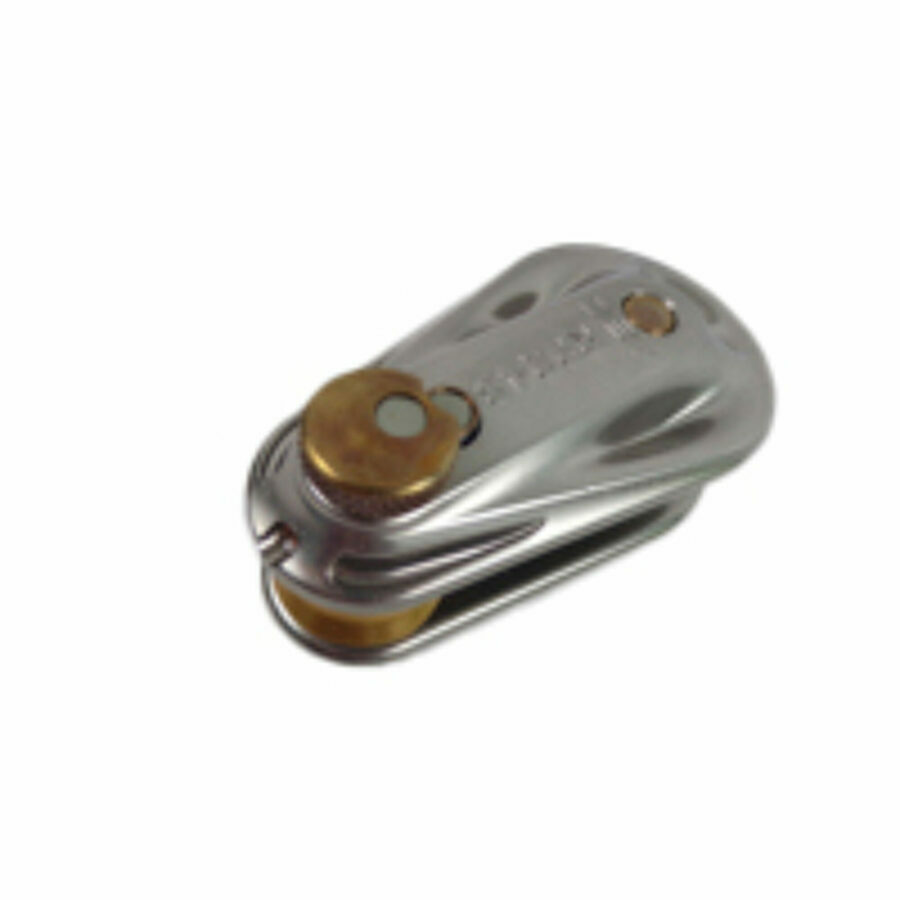

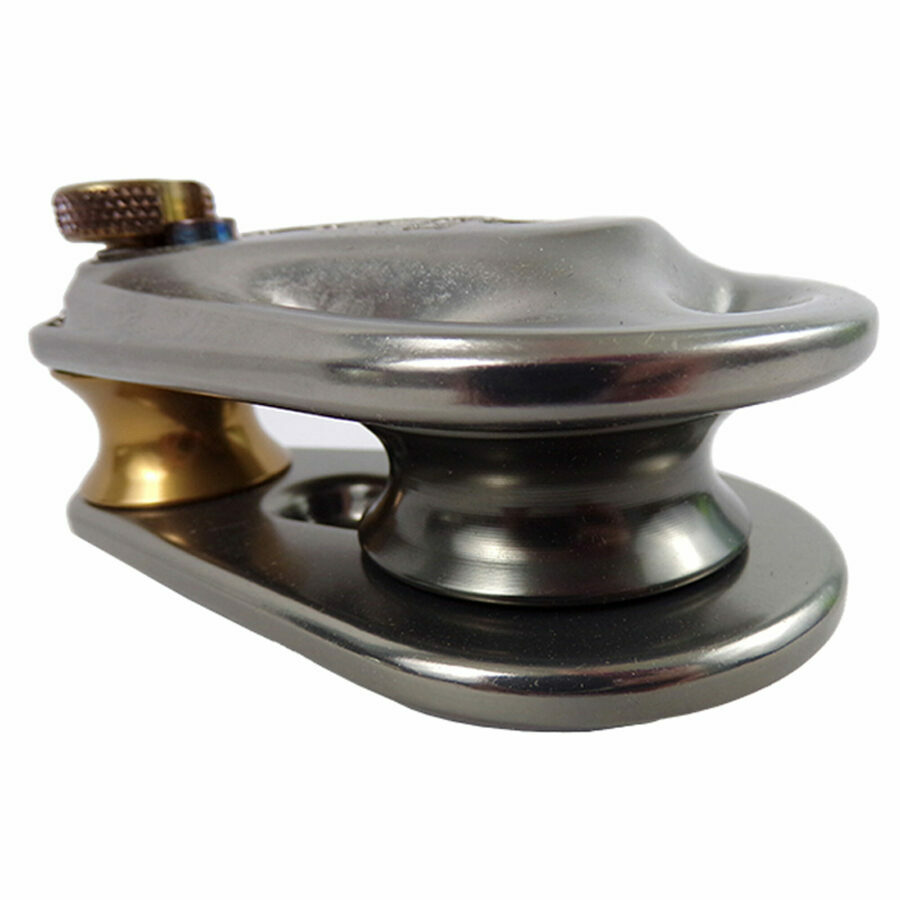

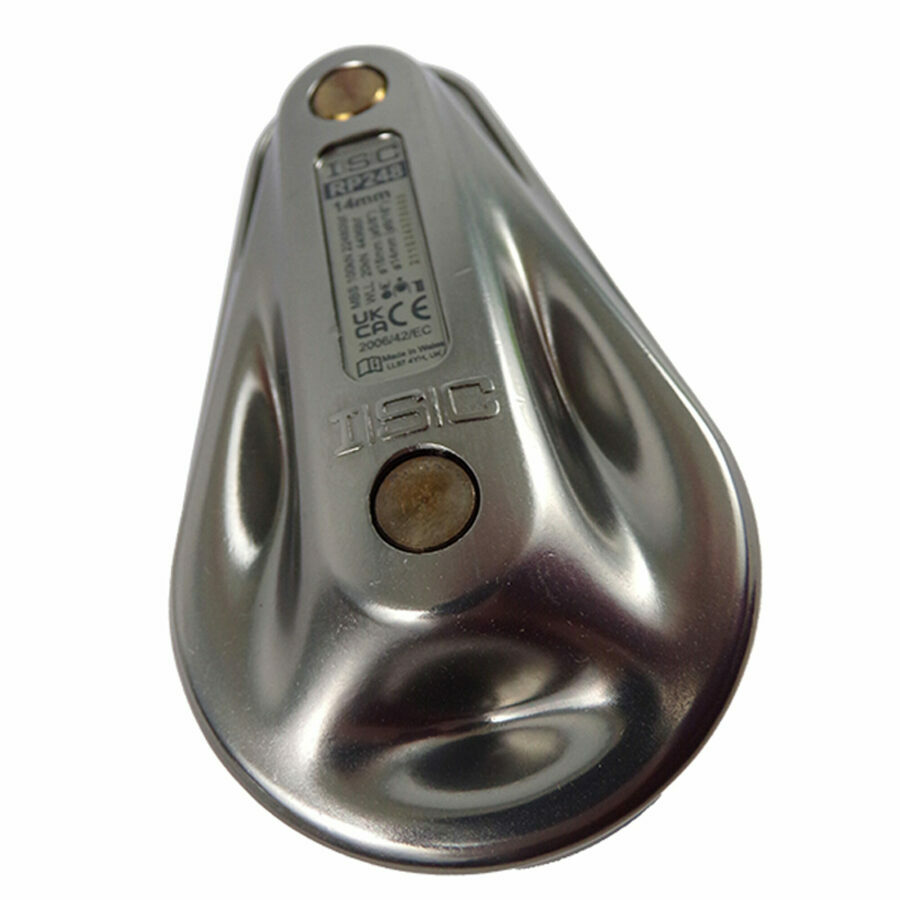

ISC 200 SERIES COMPACT PULLEY

This item is sold in multiples of: 1

Brand: ISC

Details: Color: Grey | Material: Hot Forged Aluminum

Diameter: 14 mm | 9/16"

Manufacturer: ISC | Standard: CE Marked

Application: Rigging | Serial Number: Yes | Proof Tested: Yes

Min Breaking Strength: 100 kN | 22,481 lbs.

Working Load Limit: 20 kN | 4,496 lbs

Length: 125 mm x Width: 69 mm x Weight: 21.5 oz | 1.3 lbs

Finish: Anodised

Cheek Action: Swing

MPN: RP248A1

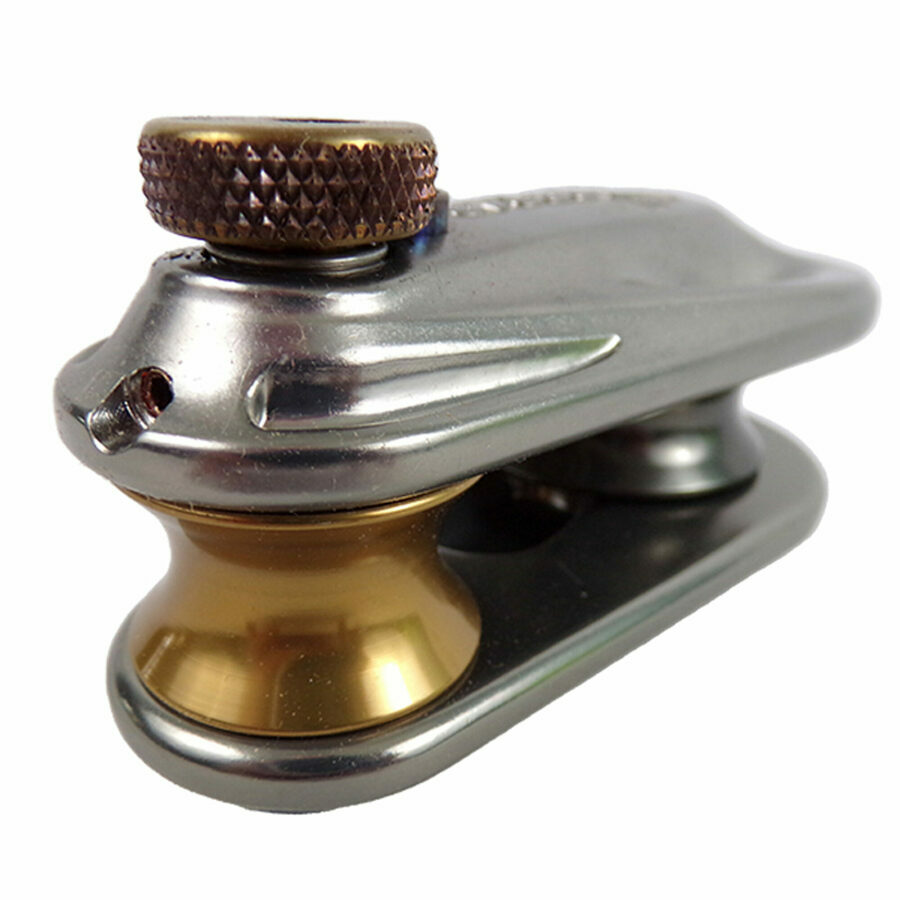

Description: The next generation ISC Rigging Pulleys are up to 150% stronger than the equivalent ISC standard Rigging Pulley models. The new low-profile Spring-lock mechanism features a new Safelock locking button to offer further security and ease of use. Simply push the Safe-lock button and turn the axle head 180° to the release position. The Safelock button can be depressed and the pinhead rotated in a continuous one-handed action. When the device is in the open position, the locking pin on the axle is retained in the correct alignment. This means that the user does t need to rotate the axle in order to correctly align the axle pin with the groove in the pulley plate, in order to close the device. Once the axle is fully depressed and the axle spring is fully compressed, the axle head must then be rotated 180° (in either direction), at which point the Safelock button engages to lock the axle head in place.
